PE 7.5kw 5000kg/H Plastic Mixer Machine With Heating Device

Name: PE 75kw 5000kgH Plastic Mixer Machine With Heating Device
Brand: BEISU
Price: 3 USD

Buy cheap PE 7.5kw 5000kg/H Plastic Mixer Machine With Heating Device product

Place of Origin : CN;JIA

Brand Name : BEISU

Certification : CE ISO

Supply Ability : 150 Set/Sets per Year

Packaging Details : Plastic film packing or wood package as customer requirements

MOQ : 1 - 4 Sets

Price : $3,000.00

Condition : New

Material : Stainless Steel

Output (kg/h) : 500 - 5000kg/h

Capacity (kg) : 1000~5000

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : Motor, Motor, Motor

Application : Plastic Mixer

Automatic Grade : Automatic

Voltage : Customzied

Dimension(L*W*H) : Customized

Warranty : 1 Year

After-sales Service Provided : Video technical support, Video technical support, Video technical support, Video technical support, Video technical support

Weight (KG) : 800 KG

Power (kW) : 7.5~11

Applicable Industries : Manufacturing Plant

After Warranty Service : Field maintenance and repair service, Field maintenance and repair service, Field maintenance and repair service, Field maintenance and repair service

Local Service Location : none

Showroom Location : Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan

Raw Material : PE/PP/ABS/PPR/PC

Mixing volume : 1000Kg

Heating power : 36Kw

Heating fan blower motor power : 0.75Kw

Feeding pipe dia : 219

Feeding inner pipe dia : 60

Material of screw : Stainless steel

Cold mixing drive method : Belt reducer

Temperature brand : OMRON,JAPAN

Contactor brand : SCHNEIDER or SIEMENS

Port : SHANGHAI or NINGBO PORT

Contact Now

PE 7.5kw 5000kg/H Plastic Mixer Machine With Heating Device

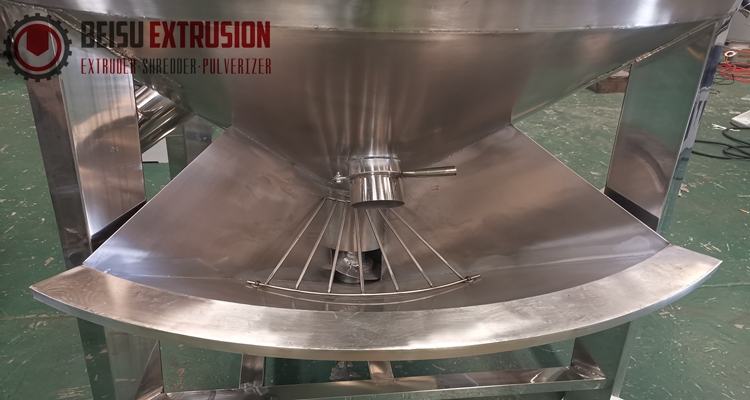

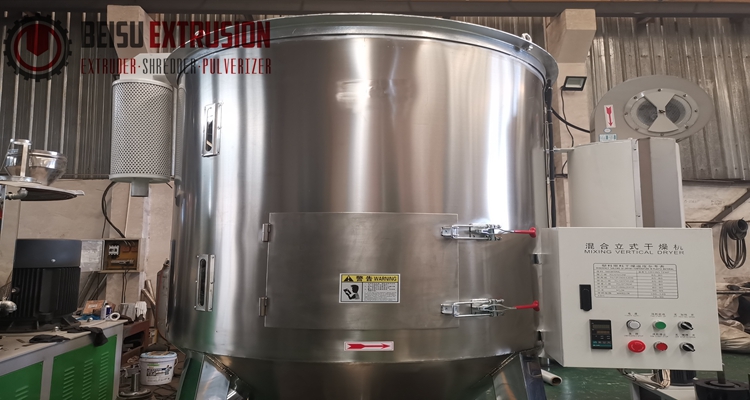

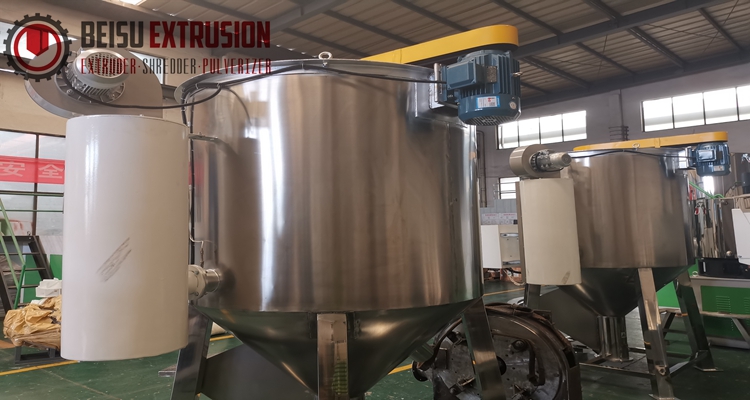

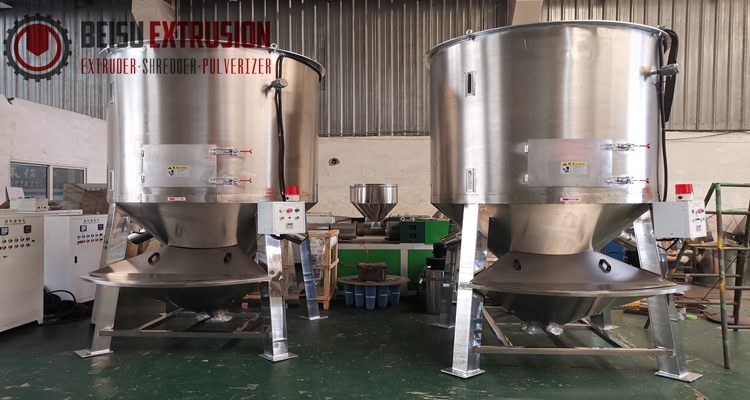

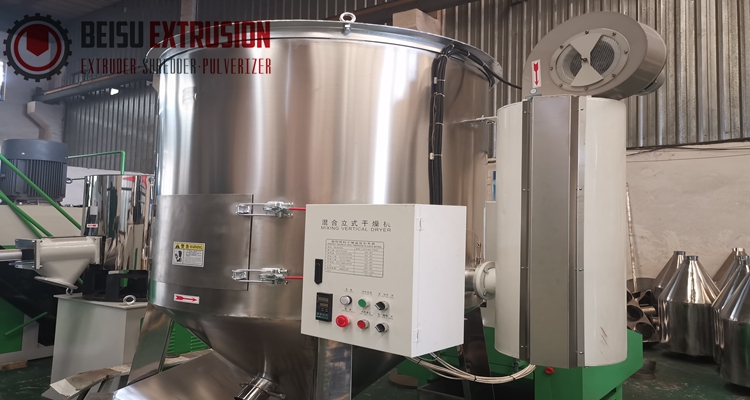

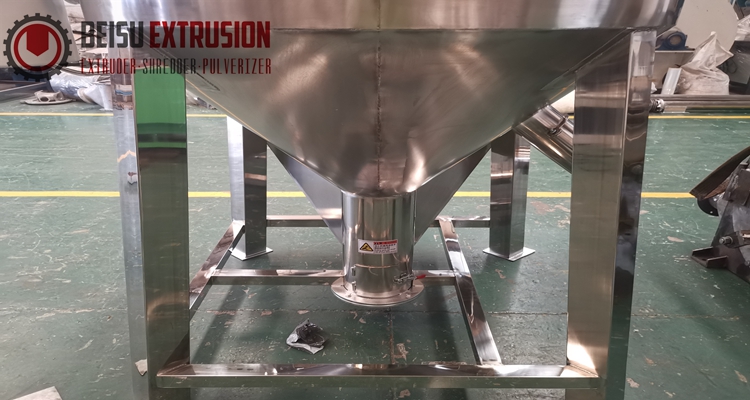

Application and working principle of vertical drying mixer: Use the rapid rotation of the screw to lift the raw materials from the bottom of the barrel from the center to the top, and then throw them down in an umbrella shape, and then return to the bottom, so that the raw materials roll up and down in the barrel for drying and mixing, and a large amount of raw materials can be uniformly dried and mixed in a short time complete. The material flow has no dead ends, no accumulation, no powder spills, and a large loading factor. It is mainly suitable for the mixing and stirring of various plastic raw materials, crushed materials, plastic sheets, plastic pellets, shaped materials, crushed materials and color masterbatches, new and old materials and The color masterbatch mixing effect is better. It is one of the necessary equipment for injection molding machine and extruder.

Model	Power			Capacity	Dimension
0.5T	4KW	4	500	130015503000
1T	5.5KW	4	1000	145017503000
2T	5.5KW	4	2000	180022003100
3T	7.5KW	4	3000	200023503700
5T	11KW	6	5000	230026004350
8T	11KW	6	8000	270031004900
10T	15KW	6	10000	270031005500

The core patents of vertical drying mixer:

A1: The hot air of the traditional dryer enters from the lower side of the barrel. Because the material is static, the hot air is more difficult to penetrate, which makes the inside of the dryer heat up and down, and sometimes the material is overheated. Blocks, causing blockage, making it more difficult for hot air to enter other areas, so the originally expected drying effect cannot be achieved. The design of this machine is a two-stage screw conveyor. The first stage feeds the raw materials into the barrel, and the second stage continuously lifts the raw materials to the upper part of the barrel and throws them in an umbrella shape, while the hot air blows out from the center of the lower part of the barrel. , Smoothly penetrate upwards from the gap of the moving raw materials, the raw materials are fully heated under dynamic conditions; A2: The dryer barrel is designed as a double-layer barrel design, with special insulation materials in the middle, which achieves the effect of heat preservation and energy saving; the inner layer is made of stainless steel for the material contact part; the middle sandwich is installed and special insulation materials, so It can achieve the effect of safety and energy saving; A3: Special high-frequency heater, fast heating, low power consumption, and the comprehensive cost of drying per ton is 25-30 yuan/ton; A4: The special double-pipe moisture exhaust port can effectively discharge moisture, collect dust, and never pollute the working environment; A5: This model has the characteristics of more work: because the materials are constantly tumbling up and down in the barrel, the hot air is not lifted from the center for transportation, so as to achieve the effect of mixing and drying. If drying is not required, this series of machines The type can be set as a separate mixing work mode; A6: Two-in-one drying and mixing function. When drying is not required, just turn off the "heating switch" and "fan switch", and this series of models can be used for plastic mixing and homogenization purposes, one machine for two purposes;
