Brand Name : BEISU
Model Number : SHR-500A
Certification : CE
Place of Origin : China
MOQ : 1 Set
Price : USD12000
Payment Terms : L/C, T/T,
Supply Ability : 150 Sets per year
Delivery Time : 25 working days

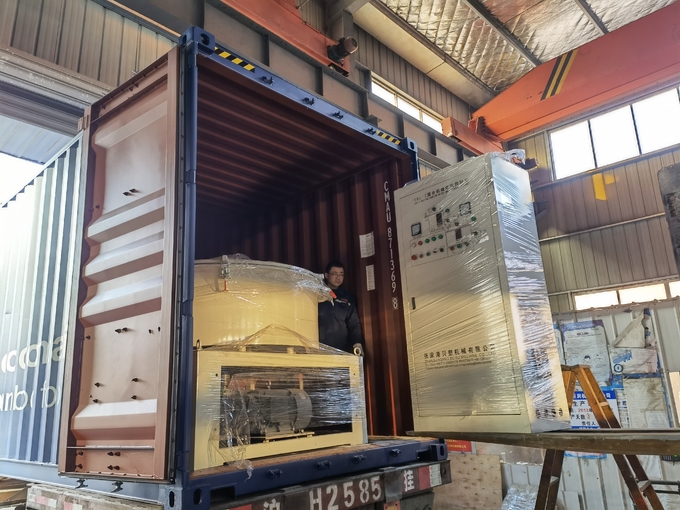

Packaging Details : Plastic film packing and pallet fixed on the machine bottom
Application : polymer, chemical, ceramic,pvc,spc,wpc,pp,pe
Model : SHR-500A Plastic Mixer Machine
Heating mixermotor power : 9Kw
Inverter brand : Delta
Temperature control brand : OMRON
Paddle mode : 3 PCS
Discharge material : S.S304
Speed : 840rpm
Capacity : 800Kg/h
Application:
SHR series plastic rubber mixer is mainly used for mixing PVC PP PE PC EVA ABS and various plastic materials, and can be used in plastic, rubber, food, daily chemical industry and other industries.
Features:
SHR series mixer has advanced design, easy operation, stable operation, high efficiency, low energy consumption and low noise.
-High-speed stirring motor frequency conversion start-up
-Three heating methods for high-speed components: material self-friction/electric heating/thermal oil heating
-Two discharging methods: automatic discharging by thermostat/mixing time control
-Parts in contact with raw materials are made of 304 stainless steel with mirror polishing
-Barrel cover and three straight-through pieces are made of cast aluminum
-Bearing chamber is specially designed for lubricating oil injection
-Drive motor overcurrent protection design

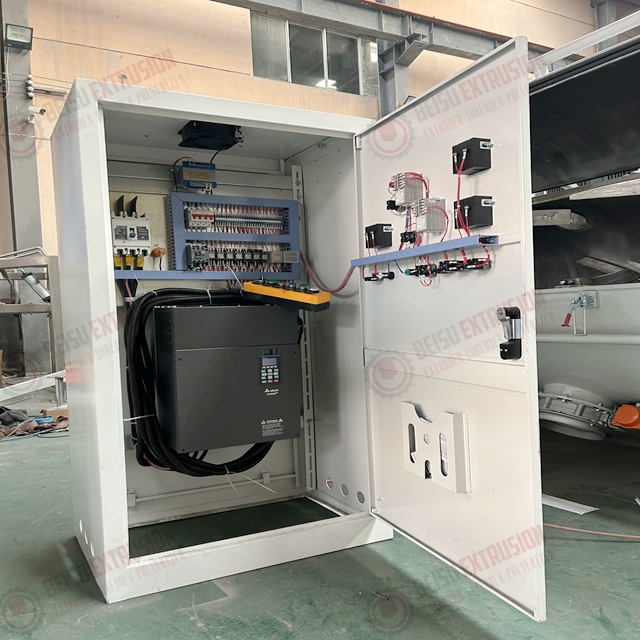

-PLC touch screen control system can be selected for high automatic control requirements
-Specially designed stirring shaft design can prevent raw materials from leaking from the barrel
-Stirring paddle has undergone rigorous balance test
Technical date:
Type | Volume (L) | Effective Volume (L) | Mixing time (min/batch) | Rotate speed (r/min) | Motor (Kw) | Capacity (kg/hour) |
SHR-5A | 5 | 3 | 6-8 | 1500 | 1.1 | 10 |
SHR-10A | 10 | 7 | 6-8 | 1500 | 3 | 20 |
SHR-25A | 25 | 20 | 6-8 | 1500 | 5.5 | 50 |
SHR-50A | 50 | 35 | 6-10 | 750/1500 | 7/11 | 100 |
SHR-100A | 100 | 75 | 6-10 | 650/1300 | 14/22 | 200 |
SHR-200A | 200 | 150 | 6-10 | 475/950 | 30/42 | 400 |
SHR-300A | 300 | 225 | 6-10 | 430/860 | 40/55 | 500 |
SHR-500A | 500 | 375 | 8-12 | 330/660 | 55/75 | 800 |
SHR-800A | 800 | 520 | 8-12 | 395/790 | 83/110 | 1400 |
SHR-1000A | 1000 | 650 | 8-14 | 330/660 | 90/132 | 1600 |
SHR-1300A | 1300 | 850 | 8-14 | 330/660 | 132/200 | 2100 |
1. Before shipment testing at factory, vedio record.
2. Vedio instruction for operation.
3. User manual and installation instruction, layout and drawings.
4. Lable&marks for disassemble parts, wiring&cables.
1. How many electric, water, air need for the machines?
BEISU: technical department supply the whole layout for workshop details.
2. Can I operate machine if don't have experienced engineers?
BEISU: (1) short-time engineers to customer company (5-15 days)
(2) Year-time working as requirements
3. Any quality checking before shipment?
BEISU: 100% confirm, run and test machines before shipment with quality certificate.
4. How long is the guarantee?
BEISU: 12 months since the first day customer operates (except wear parts)
5. How can u help us when face some technical problem?
BEISU: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
6. Where can we get spare part?
BEISU: we choose International Brand that customer can find it in everywhere, such as Siemens,Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
Real time communication SNS group chat(WeChat preferred, Skype/WhatsApp) which includes buyer side and BEISU service team is created for technical assistance in the quickest manner. Scheduled video calls are also available. Just as the company vision 'Customer Oriented' says,BEISU always stands at customer's point to offer the optimum solution and help customer to maximize profit. BEISU has its own customer management system and spare parts management system which ensure quickest responds and enough regular easy-wearing parts whenever customer requests.
![]() |

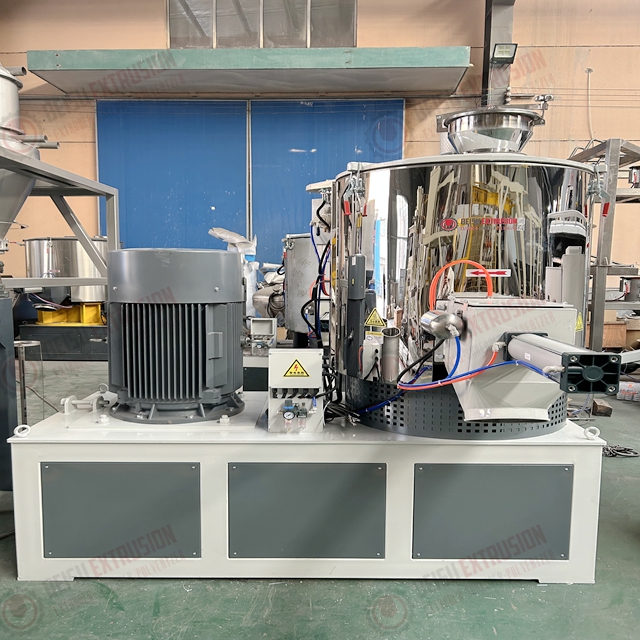

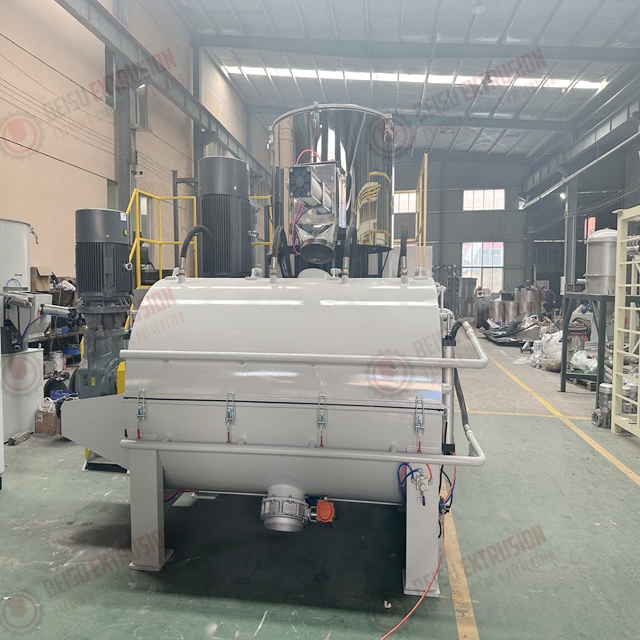

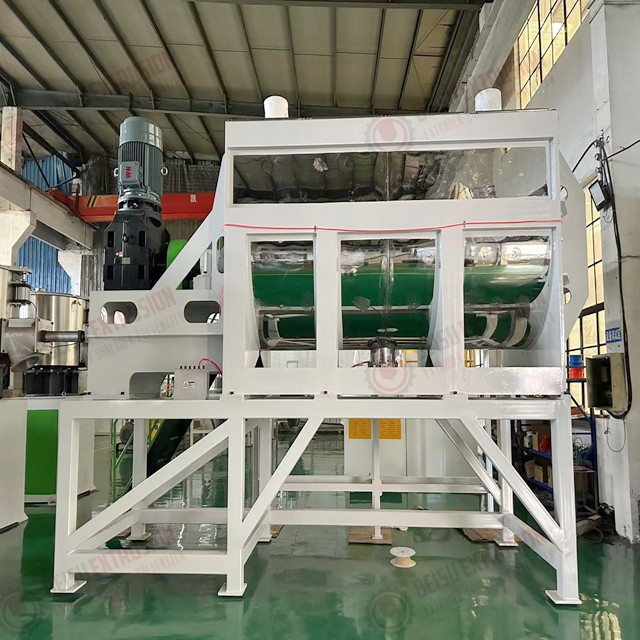

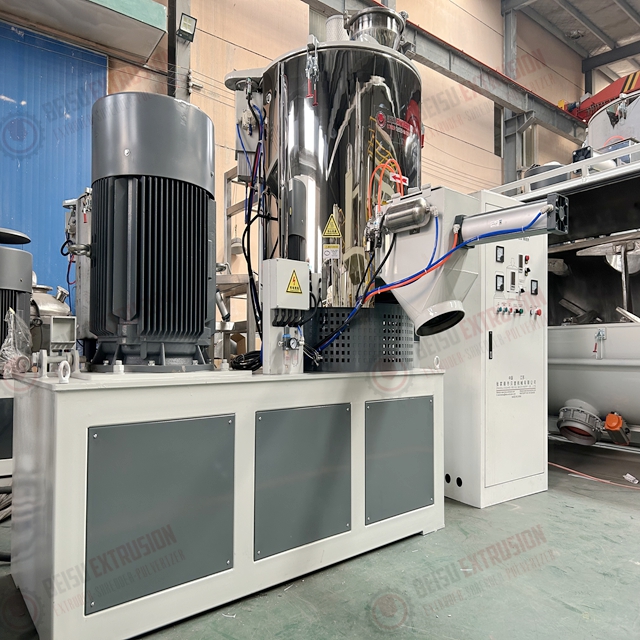

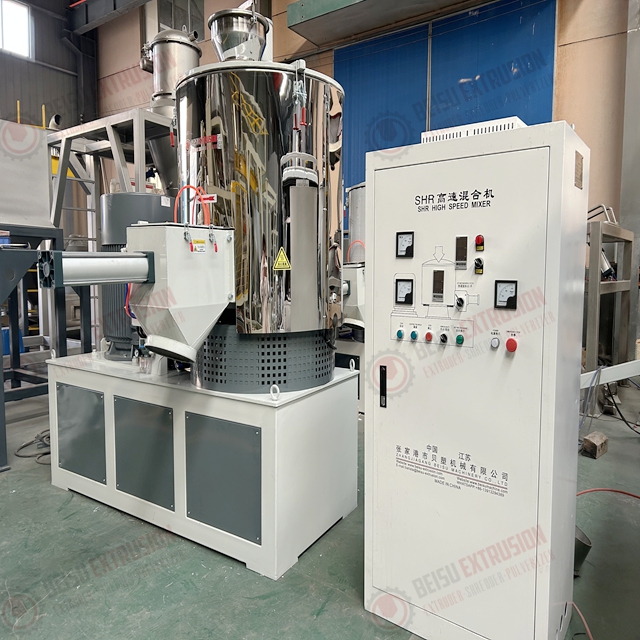

Shr-500a Plastic PE Masterbatch Compound Coating Powder Mixing Machine Images |
